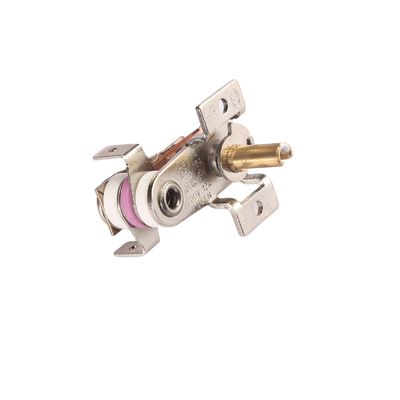

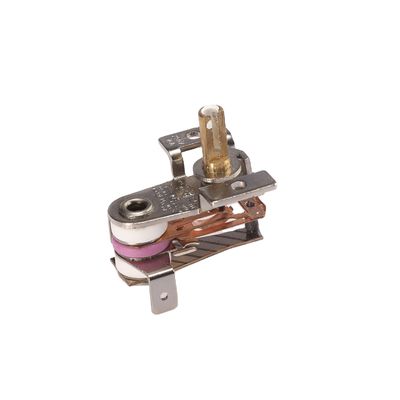

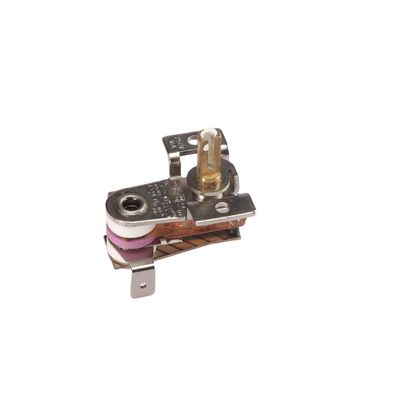

Adjustable Bimetal Thermostat KST 168 T250 for 250V / 12A VDE Voltage Current 50-250 C

Adjustable Bimetal Thermostat KST 168 T250 for 250V / 12A VDE Voltage Current 50-250 C
Adjustable Bimetal Thermostat KST 168 T250 for 250V / 12A VDE Voltage Current 50-250 C Adjustable Bimetal Thermostat KST 168 T250 for 250V / 12A VDE Voltage Current 50-250 C Adjustable Bimetal Thermostat KST 168 T250 for 250V / 12A VDE Voltage Current 50-250 C Adjustable Bimetal Thermostat KST 168 T250 for 250V / 12A VDE Voltage Current 50-250 C Adjustable Bimetal Thermostat KST 168 T250 for 250V / 12A VDE Voltage Current 50-250 C

Large Image :  Adjustable Bimetal Thermostat KST 168 T250 for 250V / 12A VDE Voltage Current 50-250 C

Product Details:
Place of Origin: Guangdong, China
Brand Name: yusen
Model Number: DS-K
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Price: $0.45/pieces 1000-9999 pieces
Supply Ability: 300000 Piece/Pieces per Month
Contact Now

Adjustable Bimetal Thermostat KST 168 T250 for 250V / 12A VDE Voltage Current 50-250 C

Description
After-sales Service Provided: Free Spare Parts Warranty: None
Type: Other Home Appliance Parts Application: Household
Power Source: Electric Voltage Current: CUL :125V/16A ;VDE : 250V / 12A
Endurance Test Cycle: 100,000 Times Operating Temperature: 50-250 ℃
Tolerance: 5℃% Port: Guangzhou

Product Description
kst 168 t250 ajustable thermostat bimetal thermostat
Main applications :
1) Oven, barbeque grill and various household appliances.
2) Fan heater
3)Electrical irons.
Principle:
Adjustable thermostat is based on bi-metal action in the principle of expansion and contraction. Bimetal thermostats turn on and off within prescribed temperature range.
Adjustable Bimetal Thermostat KST 168 T250 for 250V / 12A VDE Voltage Current 50-250 C 0
Adjustable Bimetal Thermostat KST 168 T250 for 250V / 12A VDE Voltage Current 50-250 C 1
Adjustable Bimetal Thermostat KST 168 T250 for 250V / 12A VDE Voltage Current 50-250 C 2
Adjustable Bimetal Thermostat KST 168 T250 for 250V / 12A VDE Voltage Current 50-250 C 3
Product Paramenters
Electrical Performance
10A/AC250V16A/AC 250V
Temperature Range
0 ºC-250°C
Ambient Temperature
T250°C
Wiring
A. Terminal Blocks :M4,M3
B.Plug terminal : 250#187#(0.8mm thick and bending: 30°,45°,90°,180°is available)
Product Cycles
100,000cycles
Thermostat Shaft Rotation Angle
150°,180°,210°,250°,270°,300°,310°
Electrical Strength
AC2000V/0.5mA/min
Insulation Resistance
>100MΩ
Contact Resistance
≤50MΩ
Grounding Method
Mounting plate or install oranges electrical enclosure parts connected by thermostat
Packing & Delivery
Adjustable Bimetal Thermostat KST 168 T250 for 250V / 12A VDE Voltage Current 50-250 C 4
Adjustable Bimetal Thermostat KST 168 T250 for 250V / 12A VDE Voltage Current 50-250 C 5
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Adjustable Bimetal Thermostat KST 168 T250 for 250V / 12A VDE Voltage Current 50-250 C 6
Adjustable Bimetal Thermostat KST 168 T250 for 250V / 12A VDE Voltage Current 50-250 C 7
Adjustable Bimetal Thermostat KST 168 T250 for 250V / 12A VDE Voltage Current 50-250 C 8
Zhongshan yusen of thermostats adjustable thermostats such as bimetallic sheet thermostats, with a complete and scientific quality management system ,Our products have VDE,UL,CQC,CB and other certification Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers to contact us for future business relationships and mutual success!
FAQ
1.Can I get sample for testing before order,please?
A: Yes, sample can be provided.
2.How long is the produciton lead time？
A: Normally it's around 15 days, if urgent, we will put your order on first.
3.Can I do OEM,please?
A:Yes,we accpet OEM,any drawing is welcome.
4.How is the payment way, plese?
We accept TT,Paypal,Trade assurance and LC.
