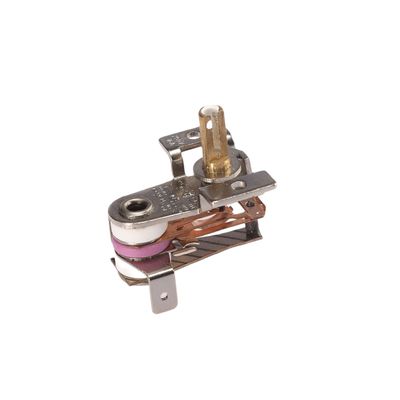

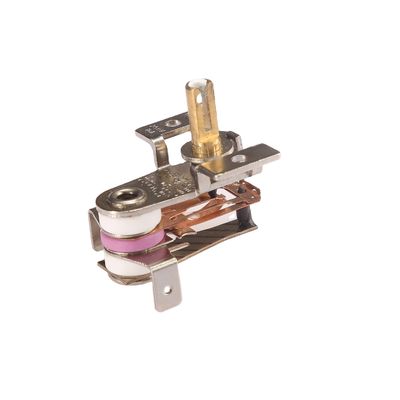

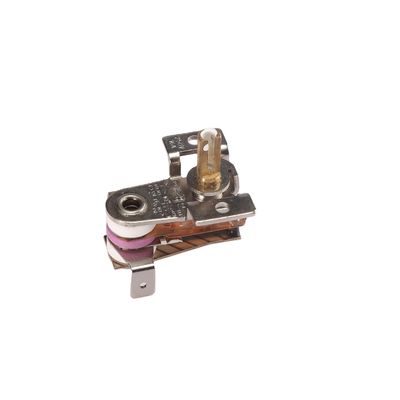

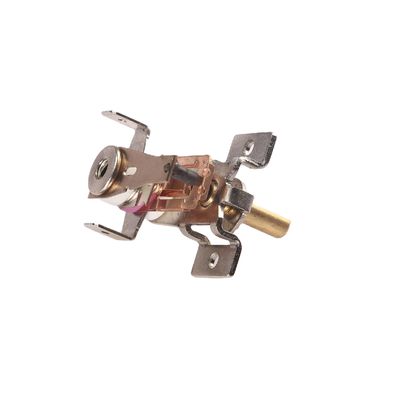

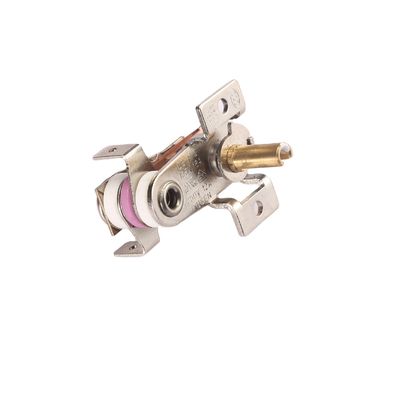

Roti Maker Bimetal Thermostat KST 220 T250 10A250V 50-250 C Tolerance 5C% for Cooking

Roti Maker Bimetal Thermostat KST 220 T250 10A250V 50-250 C Tolerance 5C% for Cooking
Roti Maker Bimetal Thermostat KST 220 T250 10A250V 50-250 C Tolerance 5C% for Cooking Roti Maker Bimetal Thermostat KST 220 T250 10A250V 50-250 C Tolerance 5C% for Cooking Roti Maker Bimetal Thermostat KST 220 T250 10A250V 50-250 C Tolerance 5C% for Cooking Roti Maker Bimetal Thermostat KST 220 T250 10A250V 50-250 C Tolerance 5C% for Cooking Roti Maker Bimetal Thermostat KST 220 T250 10A250V 50-250 C Tolerance 5C% for Cooking

Large Image :  Roti Maker Bimetal Thermostat KST 220 T250 10A250V 50-250 C Tolerance 5C% for Cooking

Product Details:
Place of Origin: Guangdong, China
Brand Name: yusen
Model Number: DS-K
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Price: $0.45/pieces 1000-9999 pieces
Supply Ability: 300000 Piece/Pieces per Month
Contact Now

Roti Maker Bimetal Thermostat KST 220 T250 10A250V 50-250 C Tolerance 5C% for Cooking

Description
After-sales Service Provided: Free Spare Parts Warranty: None
Type: Other Home Appliance Parts Application: Household
Power Source: Electric Voltage Current: CUL :125V/16A ;VDE : 250V / 12A
Endurance Test Cycle: 100,000 Times Operating Temperature: 50-250 ℃
Tolerance: 5℃% Port: Guangzhou

Roti Maker Bimetal Thermostat KST 220 T250 10A250V 50-250 C Tolerance 5C% for Cooking 0
Product Description
Roti Maker Bimetal Thermostat KST 220 T250 10A250V 50-250 C Tolerance 5C% for Cooking 1
thermostats for roti maker kst 220 t250 10a250v bimetal thermostat
Main applications :
1) Oven, barbeque grill and various household appliances.
2) Fan heater
3)Electrical irons.
Principle:
Adjustable thermostat is based on bi-metal action in the principle of expansion and contraction. Bimetal thermostats turn on and
off within prescribed temperature range.
Roti Maker Bimetal Thermostat KST 220 T250 10A250V 50-250 C Tolerance 5C% for Cooking 2
Certificate
Roti Maker Bimetal Thermostat KST 220 T250 10A250V 50-250 C Tolerance 5C% for Cooking 3
Product Paramenters
Electrical Performance
10A/AC250V16A/AC 250V
Temperature Range
0 ºC-250°C
Ambient Temperature
T250°C
Wiring
A. Terminal Blocks :M4,M3
B.Plug terminal : 250#187#(0.8mm thick and bending: 30°,45°,90°,180°is available)
Product Cycles
100,000cycles
Thermostat Shaft Rotation Angle
150°,180°,210°,250°,270°,300°,310°
Electrical Strength
AC2000V/0.5mA/min
Insulation Resistance
>100MΩ
Contact Resistance
≤50MΩ
Grounding Method
Mounting plate or install oranges electrical enclosure parts connected by thermostat
Roti Maker Bimetal Thermostat KST 220 T250 10A250V 50-250 C Tolerance 5C% for Cooking 4
Roti Maker Bimetal Thermostat KST 220 T250 10A250V 50-250 C Tolerance 5C% for Cooking 5
Roti Maker Bimetal Thermostat KST 220 T250 10A250V 50-250 C Tolerance 5C% for Cooking 6
Roti Maker Bimetal Thermostat KST 220 T250 10A250V 50-250 C Tolerance 5C% for Cooking 7
