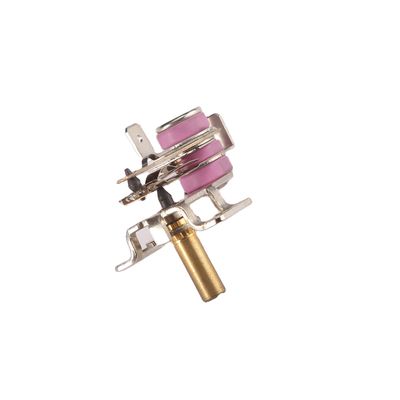

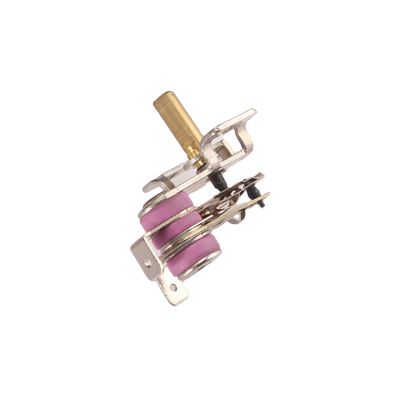

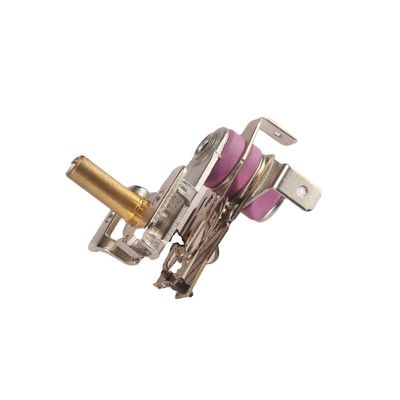

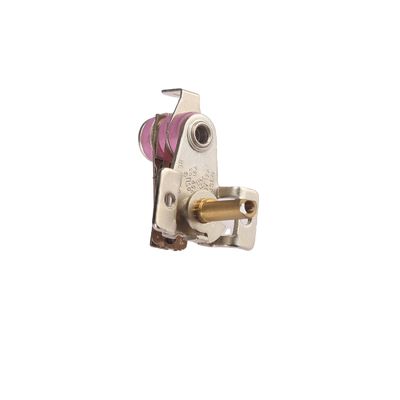

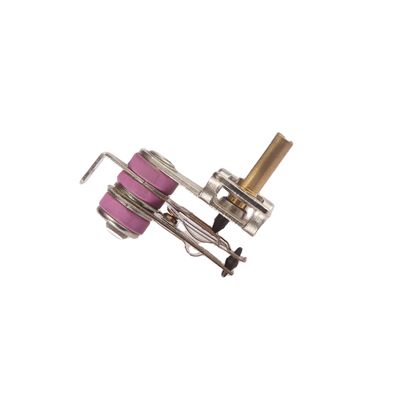

Other Home Appliance Parts Electric Power Source KST Thermostat KST220 T250 for Oven

Other Home Appliance Parts Electric Power Source KST Thermostat KST220 T250 for Oven
Other Home Appliance Parts Electric Power Source KST Thermostat KST220 T250 for Oven Other Home Appliance Parts Electric Power Source KST Thermostat KST220 T250 for Oven Other Home Appliance Parts Electric Power Source KST Thermostat KST220 T250 for Oven Other Home Appliance Parts Electric Power Source KST Thermostat KST220 T250 for Oven Other Home Appliance Parts Electric Power Source KST Thermostat KST220 T250 for Oven Other Home Appliance Parts Electric Power Source KST Thermostat KST220 T250 for Oven

Large Image :  Other Home Appliance Parts Electric Power Source KST Thermostat KST220 T250 for Oven

Product Details:
Place of Origin: Guangdong, China
Brand Name: yusen
Model Number: DS-K
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Price: $0.45/pieces 1000-9999 pieces
Supply Ability: 300000 Piece/Pieces per Month
Contact Now

Other Home Appliance Parts Electric Power Source KST Thermostat KST220 T250 for Oven

Description
After-sales Service Provided: Free Spare Parts Warranty: None
Type: Other Home Appliance Parts Application: Household
Power Source: Electric Voltage Current: CUL :125V/16A ;VDE : 250V / 12A
Endurance Test Cycle: 100,000 Times Operating Temperature: 50-250 ℃
Tolerance: 5℃% Port: Guangzhou

Other Home Appliance Parts Electric Power Source KST Thermostat KST220 T250 for Oven 0
Product Description
Other Home Appliance Parts Electric Power Source KST Thermostat KST220 T250 for Oven 1
Oven Bimetallic Thermostat KST Thermostat KST220 T250 Thermostat
Main applications :
1) Oven, barbeque grill and various household appliances.
2) Fan heater
3)Electrical irons.
Principle:
Adjustable thermostat is based on bi-metal action in the principle of expansion and contraction. Bimetal thermostats turn on and
off within prescribed temperature range.
Other Home Appliance Parts Electric Power Source KST Thermostat KST220 T250 for Oven 2
Certificate
Other Home Appliance Parts Electric Power Source KST Thermostat KST220 T250 for Oven 3
Product Paramenters
Electrical Performance
10A/AC250V16A/AC 250V
Temperature Range
0 ºC-250°C
Ambient Temperature
T250°C
Wiring
A. Terminal Blocks :M4,M3
B.Plug terminal : 250#187#(0.8mm thick and bending: 30°,45°,90°,180°is available)
Product Cycles
100,000cycles
Thermostat Shaft Rotation Angle
150°,180°,210°,250°,270°,300°,310°
Electrical Strength
AC2000V/0.5mA/min
Insulation Resistance
>100MΩ
Contact Resistance
≤50MΩ
Grounding Method
Mounting plate or install oranges electrical enclosure parts connected by thermostat
Other Home Appliance Parts Electric Power Source KST Thermostat KST220 T250 for Oven 4
Other Home Appliance Parts Electric Power Source KST Thermostat KST220 T250 for Oven 5
Other Home Appliance Parts Electric Power Source KST Thermostat KST220 T250 for Oven 6
Other Home Appliance Parts Electric Power Source KST Thermostat KST220 T250 for Oven 7
