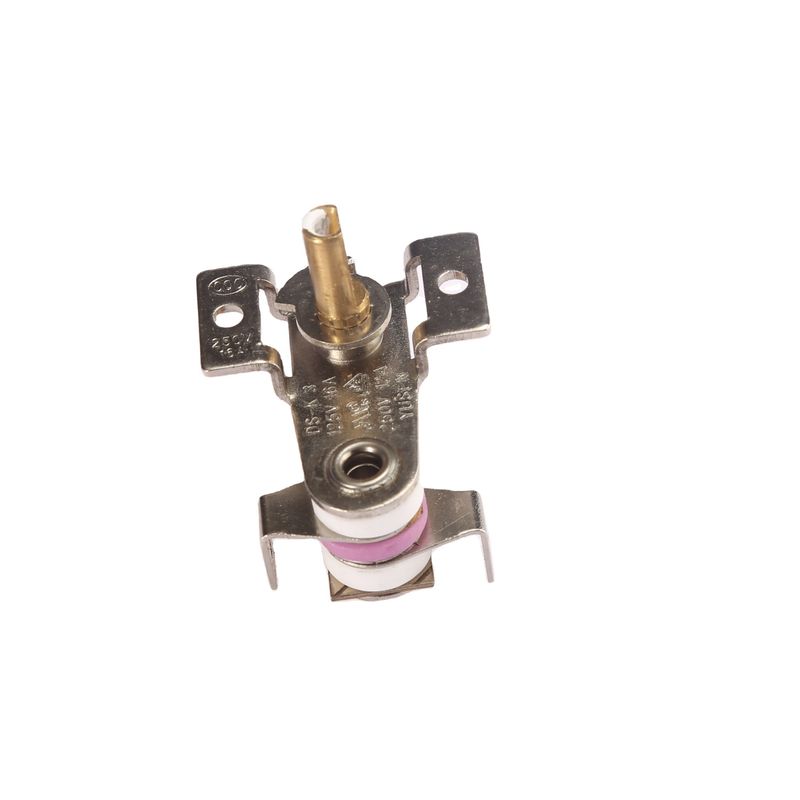

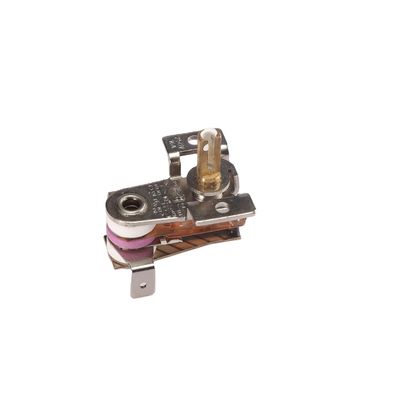

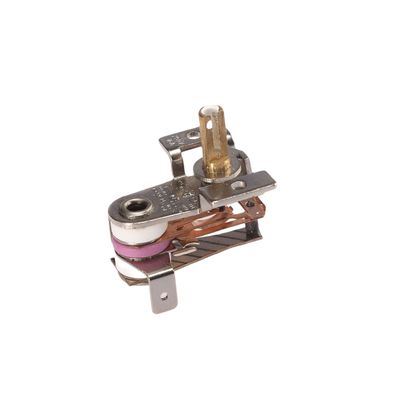

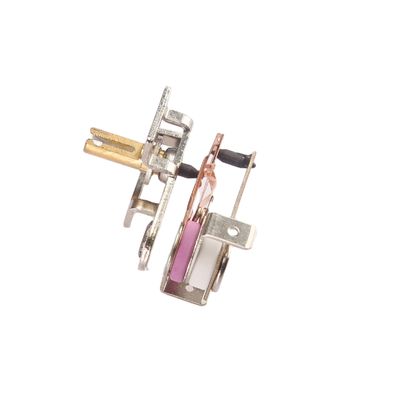

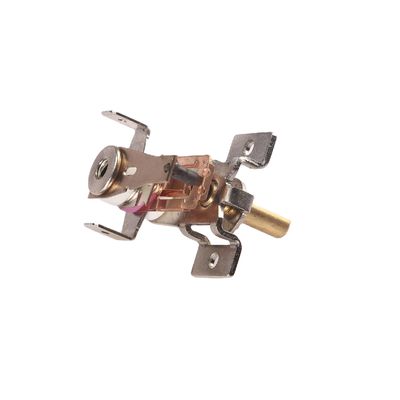

VDE 250V / 12A KST Series Temperature Control Switch with Electric Bimetal Thermostat

Large Image : VDE 250V / 12A KST Series Temperature Control Switch with Electric Bimetal Thermostat

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	yusen
Model Number:	DS-K

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Price:	$0.45/pieces 1000-9999 pieces
Supply Ability:	300000 Piece/Pieces per Month

Contact Now

VDE 250V / 12A KST Series Temperature Control Switch with Electric Bimetal Thermostat

Description

After-sales Service Provided:	Free Spare Parts	Warranty:	None
Type:	Other Home Appliance Parts	Application:	Household
Power Source:	Electric	Voltage Current:	CUL :125V/16A ;VDE : 250V / 12A
Endurance Test Cycle:	100,000 Times	Operating Temperature:	50-250 ℃
Tolerance:	5℃%	Port:	Guangzhou

Product Description

kst 820 1105 bimetal thermostat kst series thermostat temperature control switch
Main applications :
1) Oven, barbeque grill and various household appliances.
2) Fan heater
3)Electrical irons.
Principle:
Adjustable thermostat is based on bi-metal action in the principle of expansion and contraction. Bimetal thermostats turn on and off within prescribed temperature range.

Product Paramenters

Electrical Performance			10A/AC250V16A/AC 250V
Temperature Range			0 ºC-250°C
Ambient Temperature			T250°C
Wiring			A. Terminal Blocks :M4,M3 B.Plug terminal : 250#187#(0.8mm thick and bending: 30°,45°,90°,180°is available)
Product Cycles			100,000cycles
Thermostat Shaft Rotation Angle			150°,180°,210°,250°,270°,300°,310°
Electrical Strength			AC2000V/0.5mA/min
Insulation Resistance			>100MΩ
Contact Resistance			≤50MΩ
Grounding Method			Mounting plate or install oranges electrical enclosure parts connected by thermostat
