Electric Power Source Bimetal Oven Thermostat High Endurance Test Cycle 000 Times

Electric Power Source Bimetal Oven Thermostat High Endurance Test Cycle 000 Times
Electric Power Source Bimetal Oven Thermostat High Endurance Test Cycle 000 Times Electric Power Source Bimetal Oven Thermostat High Endurance Test Cycle 000 Times Electric Power Source Bimetal Oven Thermostat High Endurance Test Cycle 000 Times Electric Power Source Bimetal Oven Thermostat High Endurance Test Cycle 000 Times Electric Power Source Bimetal Oven Thermostat High Endurance Test Cycle 000 Times

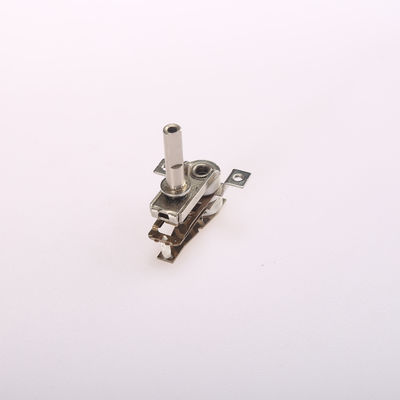

Large Image :  Electric Power Source Bimetal Oven Thermostat High Endurance Test Cycle 000 Times

Product Details:
Place of Origin: Guangdong, China
Brand Name: yusen
Model Number: DS-K
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Price: $0.68/pieces 1000-9999 pieces
Supply Ability: 300000 Piece/Pieces per Month
Contact Now

Electric Power Source Bimetal Oven Thermostat High Endurance Test Cycle 000 Times

Description
After-sales Service Provided: Free Spare Parts Warranty: None
Type: Other Home Appliance Parts Application: Household
Power Source: Electric Voltage Current: CUL :125V/16A ;VDE : 250V / 12A
Endurance Test Cycle: 100,000 Times Operating Temperature: 50-250 ℃
Tolerance: 5℃% Port: Guangzhou

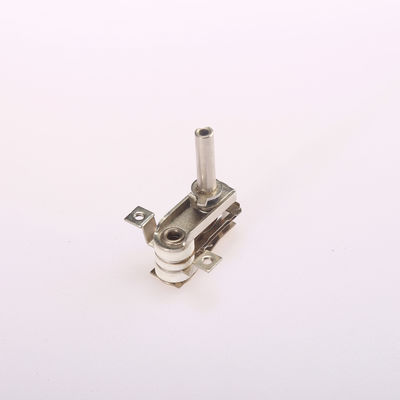

Electric Power Source Bimetal Oven Thermostat High Endurance Test Cycle 000 Times 0

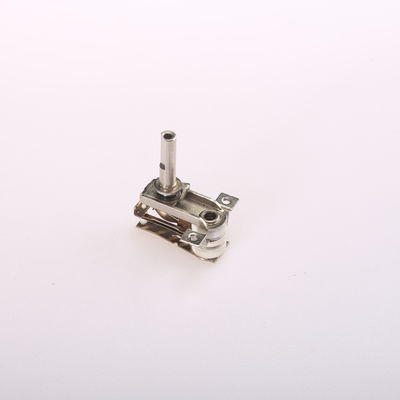

Electric Power Source Bimetal Oven Thermostat High Endurance Test Cycle 000 Times 1
Electrical Performance
10A/AC250V16A/AC 250V
Temperature Range
0 ºC-250°C
Ambient Temperature
T250°C
Wiring
A. Terminal Blocks :M4,M3
B.Plug terminal : 250#187#(0.8mm thick and bending: 30°,45°,90°,180°is available)
Product Cycles
100,000cycles
Thermostat Shaft Rotation Angle
150°,180°,210°,250°,270°,300°,310°
Electrical Strength
AC2000V/0.5mA/min
Insulation Resistance
>100MΩ
Contact Resistance
≤50MΩ
Grounding Method
Mounting plate or install oranges electrical enclosure parts connected by thermostat

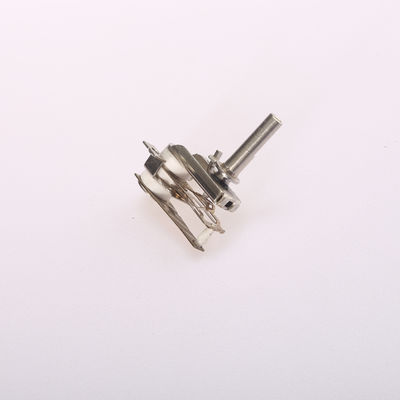

Electric Power Source Bimetal Oven Thermostat High Endurance Test Cycle 000 Times 2

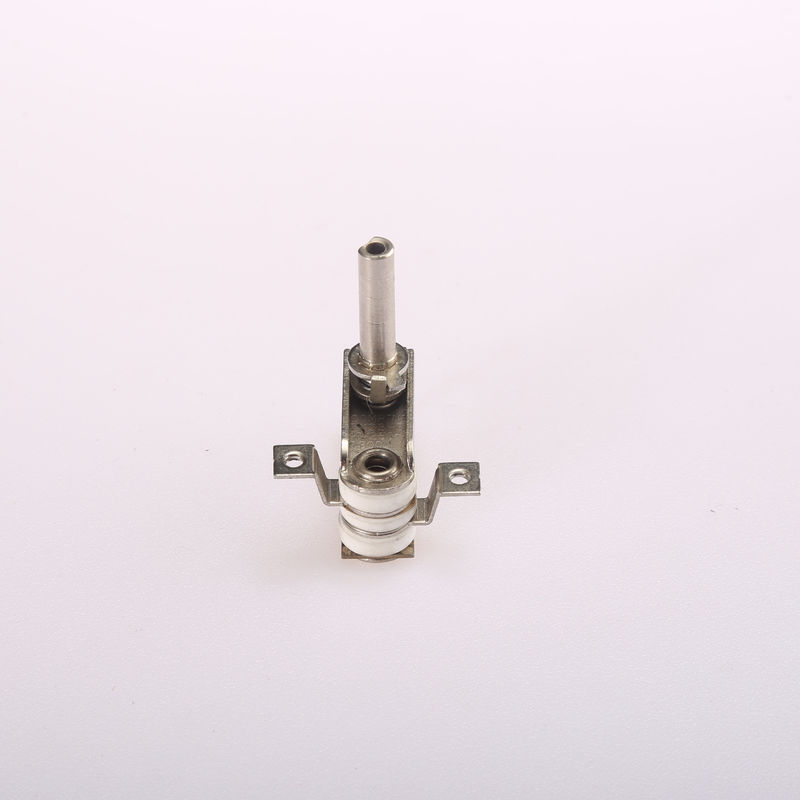

Electric Power Source Bimetal Oven Thermostat High Endurance Test Cycle 000 Times 3
Electric Power Source Bimetal Oven Thermostat High Endurance Test Cycle 000 Times 4
Electric Power Source Bimetal Oven Thermostat High Endurance Test Cycle 000 Times 5
Electric Power Source Bimetal Oven Thermostat High Endurance Test Cycle 000 Times 6
Electric Power Source Bimetal Oven Thermostat High Endurance Test Cycle 000 Times 7
Electric Power Source Bimetal Oven Thermostat High Endurance Test Cycle 000 Times 8
FAQ
1.Can I get sample for testing before order?
A：Yes, sample can be provided.

2.How long can I get the sample?
A：lt need about 2-3 days.

3.How long is the produciton lead time?
A：Normally it's around 15days, if urgent, we will put yourorder on first.

4.Can I do OEMplease?
A：Yes,we accpet OEM,any drawing is welcome

5.How is the payment way, plese?
A：We accept TT,Paypal,Trade assurance and LC
