High Performance Multifunctional Thermostat For Household Temperature Adjustment

High Performance Multifunctional Thermostat For Household Temperature Adjustment
High Performance Multifunctional Thermostat For Household Temperature Adjustment High Performance Multifunctional Thermostat For Household Temperature Adjustment High Performance Multifunctional Thermostat For Household Temperature Adjustment High Performance Multifunctional Thermostat For Household Temperature Adjustment High Performance Multifunctional Thermostat For Household Temperature Adjustment High Performance Multifunctional Thermostat For Household Temperature Adjustment

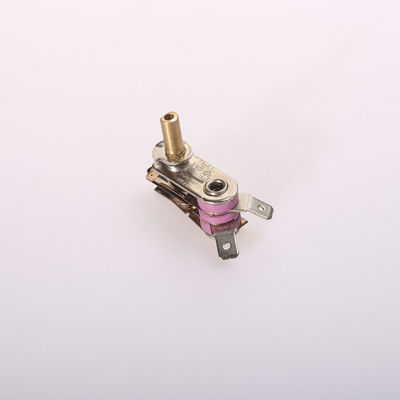

Large Image :  High Performance Multifunctional Thermostat For Household Temperature Adjustment

Product Details:
Place of Origin: Guangdong, China
Brand Name: yusen
Model Number: DS-K
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Price: $0.68/pieces 1000-9999 pieces
Supply Ability: 300000 Piece/Pieces per Month
Contact Now

High Performance Multifunctional Thermostat For Household Temperature Adjustment

Description
After-sales Service Provided: Free Spare Parts Warranty: None
Type: Other Home Appliance Parts Application: Household
Power Source: Electric Voltage Current: CUL :125V/16A ;VDE : 250V / 12A
Endurance Test Cycle: 100,000 Times Operating Temperature: 50-250 ℃
Tolerance: 5℃% Port: Guangzhou

High Performance Multifunctional Thermostat For Household Temperature Adjustment 0
High Performance Multifunctional Thermostat For Household Temperature Adjustment 1
Electrical Performance

10A/AC250V16A/AC 250V


Temperature Range

0 ºC-250°C


Ambient Temperature

T250°C


Wiring

A. Terminal Blocks :M4,M3
B.Plug terminal : 250#187#(0.8mm thick and bending: 30°,45°,90°,180°is available)


Product Cycles

100,000cycles


Thermostat Shaft Rotation Angle

150°,180°,210°,250°,270°,300°,310°


Electrical Strength

AC2000V/0.5mA/min


Insulation Resistance

>100MΩ


Contact Resistance

≤50MΩ


Grounding Method

Mounting plate or install oranges electrical enclosure parts connected by thermostat


High Performance Multifunctional Thermostat For Household Temperature Adjustment 2
High Performance Multifunctional Thermostat For Household Temperature Adjustment 3
High Performance Multifunctional Thermostat For Household Temperature Adjustment 4
High Performance Multifunctional Thermostat For Household Temperature Adjustment 5
High Performance Multifunctional Thermostat For Household Temperature Adjustment 6
High Performance Multifunctional Thermostat For Household Temperature Adjustment 7
High Performance Multifunctional Thermostat For Household Temperature Adjustment 8
FAQ
1.Can I get sample for testing before order?
A:Yes, sample can be provided.

2.How long can I get the sample?
A:lt need about 2-3 days.

3.How long is the produciton lead time?
A:Normally it's around 15days, if urgent, we will put yourorder on first.

4.Can I do OEMplease?
A:Yes,we accpet OEM,any drawing is welcome

5.How is the payment way, plese?
A:We accept TT,Paypal,Trade assurance and LC
